PES Scan with CG Optimization

Overview

Conjugate Gradient (CG) is available for relaxed PES scans through #scan(method=cg). It reuses the CG-only mode of MAPLE's SD/CG optimizer family at each constrained scan point.

CG is more efficient than pure SD when the starting geometry is already reasonable, while still keeping memory usage low.

Parameters

Per-point CG settings reuse the same controls as #opt(method=cg). With method=cg the SD phase is disabled at each scan point; the scan driver keeps per-point optimizer verbosity quiet.

Parameter	Type	Default	Description
`max_step`	float	`0.2`	Maximum step length in Angstrom.
`max_iter`	int	`256`	Maximum CG iterations per scan point.
`cg_restart_threshold`	float	`0.2`	Restart CG directions when the gradient change ratio exceeds this value.
`cg_beta_method`	str	`"prp+"`	Conjugate gradient beta formula. `prp+` (Polak–Ribière-Plus) is recommended for molecular optimization.
`diis_enabled`	bool	`True`	Enable DIIS extrapolation acceleration.
`diis_store_every`	int	`5`	Store a DIIS snapshot every N steps.
`diis_min_snapshots`	int	`3`	Minimum snapshots required before DIIS extrapolation is attempted.
`diis_memory`	int	`6`	Maximum number of DIIS snapshots stored.
`verbose`	int	`0` in scans	Per-point optimizer verbosity. Scan keeps this low so the scan log stays readable.

Input Example

Checked-in MAPLE example: example/scan/cg/butane_torsion.inp. This is the relaxed butane torsion scan shown in the visualization below:

#model=aimnet2nse
#scan(method=cg,mode=relaxed)
#device=gpu0

C     -0.52081539     1.11161504    -0.13989751
C      0.59078300     0.29318923    -0.77842290
C      1.32746823    -0.60957381     0.21152861
C      0.45259197    -1.70775275     0.79614860
H     -0.94949784     1.80049876    -0.87488523
H     -1.32977057     0.47261032     0.22606643
H     -0.14081339     1.70426027     0.69821742
H      1.31638081     0.98145785    -1.22807656
H      0.17655991    -0.30881448    -1.59557540
H      1.74762224    -0.00673639     1.02502995
H      2.17359552    -1.07649793    -0.30658812
H      1.05410451    -2.37229845     1.42471640
H     -0.00260239    -2.31098551     0.00433108
H     -0.34575942    -1.29510299     1.41986360

S 1 2 3 4 5.0 72

The final S line is a dihedral scan: four atom indices followed by a 5.0 degree step and 72 increments, producing 73 scan points including the initial geometry.

Scan Visualization

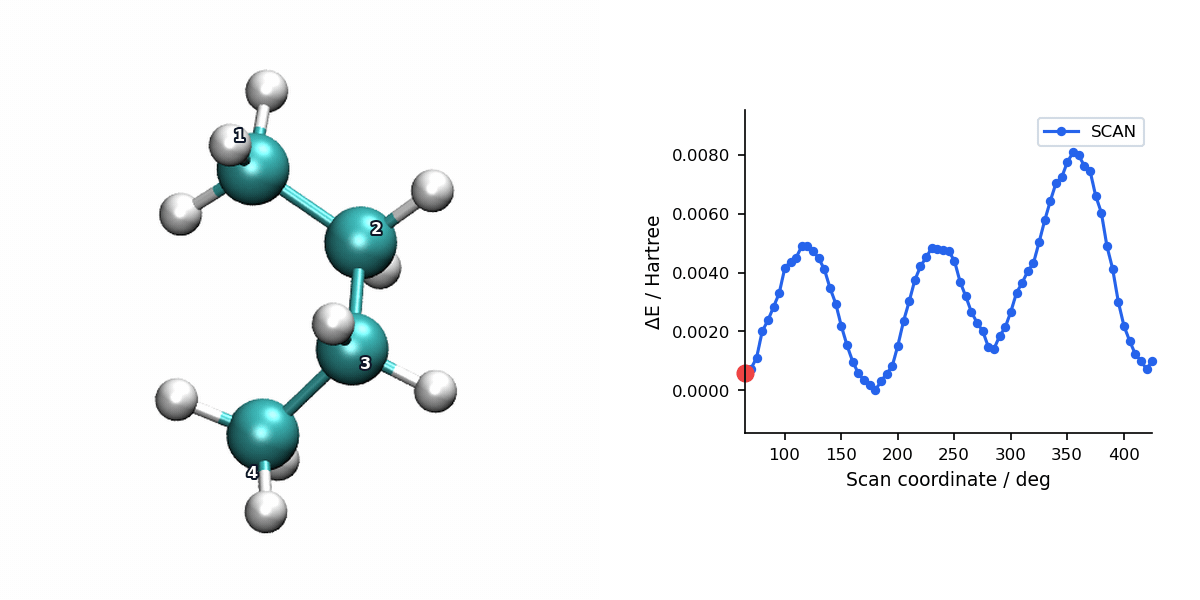

The animation below pairs the generated scan geometries with the energy profile for a relaxed butane torsion scan using CG.

Fig. 1 — Butane torsion relaxed scan (CG)

When to Use CG Scans

Smooth scan regions: CG converges much faster than SD on well-behaved scan-point surfaces by exploiting gradient history to build conjugate search directions.
Memory-constrained scans: CG stores only the previous gradient vector, making it more memory-efficient than L-BFGS for very large systems.
Reasonable starting geometries: CG is most effective when initial per-point forces are moderate. For severely distorted structures, prefer SD or SD/CG for a more robust initial phase.

Note

For most scans, SD/CG (which runs SD first and automatically switches to CG) is preferable to pure CG, as it combines robust initial descent with efficient final convergence. Pure CG is best when scan-point starting geometries are already reasonable.
